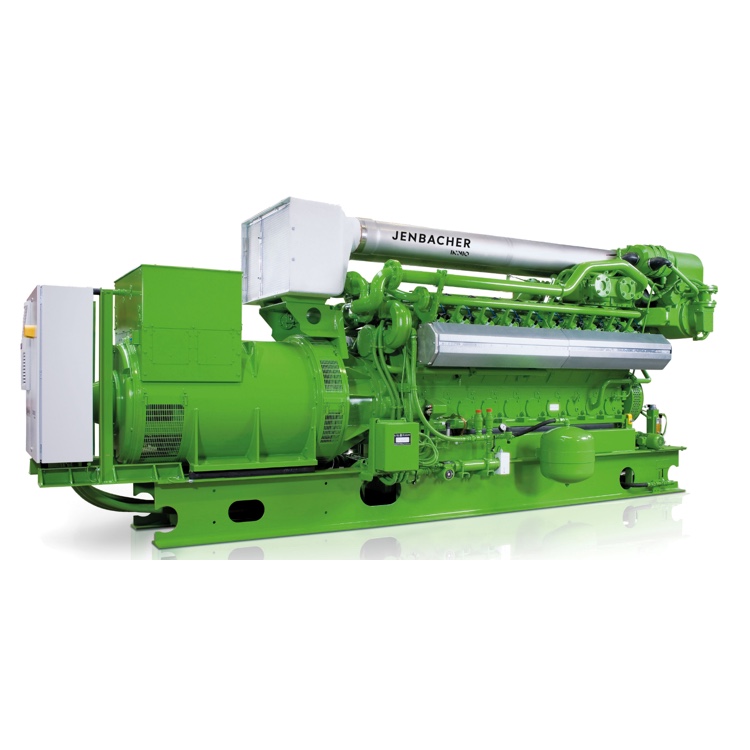

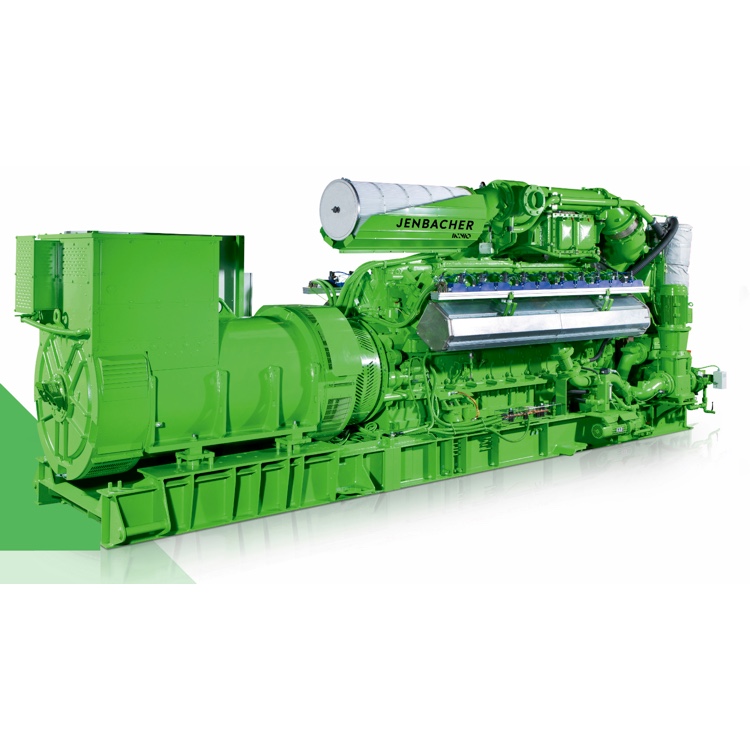

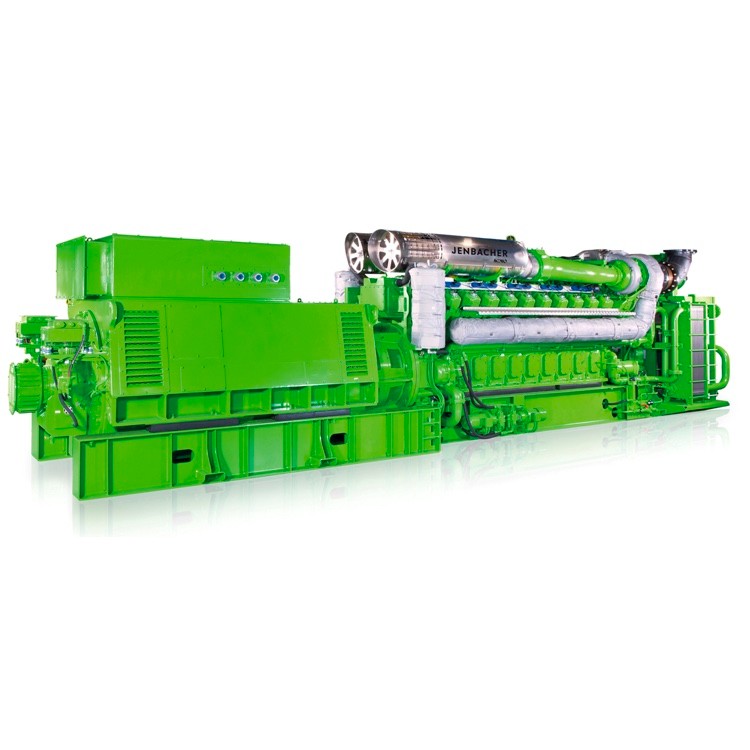

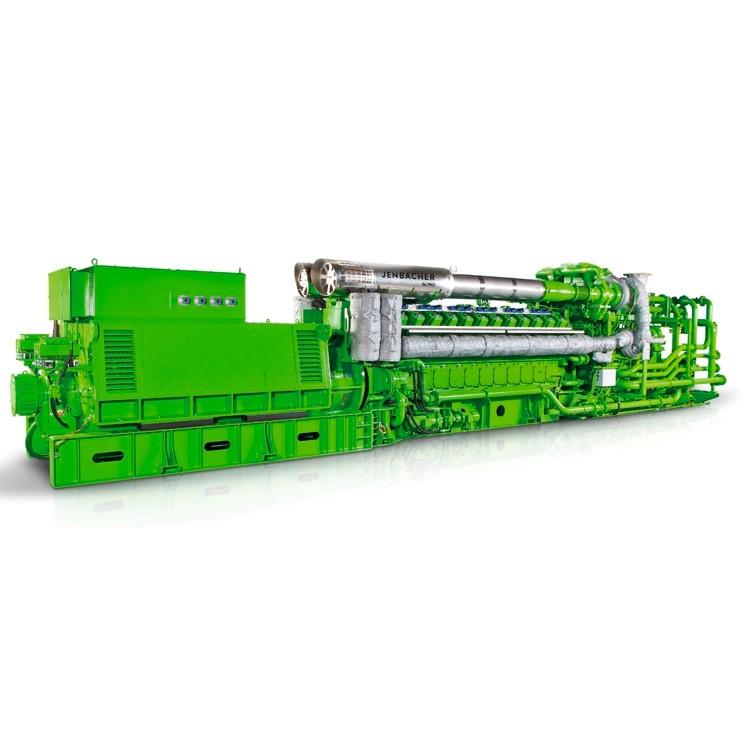

Gas Generators Powered By Jenbacher Gas Engines

50Hz/60Hz
Optional Alternators: Leroy Somer, Stamford, Evotec, Engga
Optional Controllers: ComAP, Deepsea, DEIF, SmartGen
Optional Configurations:
ATS Panel, Synchronization Panel
CHP Heat Recovery System
Biogas Scrubber
Compact Soundproof Canopy, 20ft/40ft Containerized Canopy

INQUIRY Whatsapp

Product Details

Product Tags

Top Selections:

Jenbacher Gas Generator Series:

Type:	Type 2	Type 3	Type 4	Type 6	Type 9

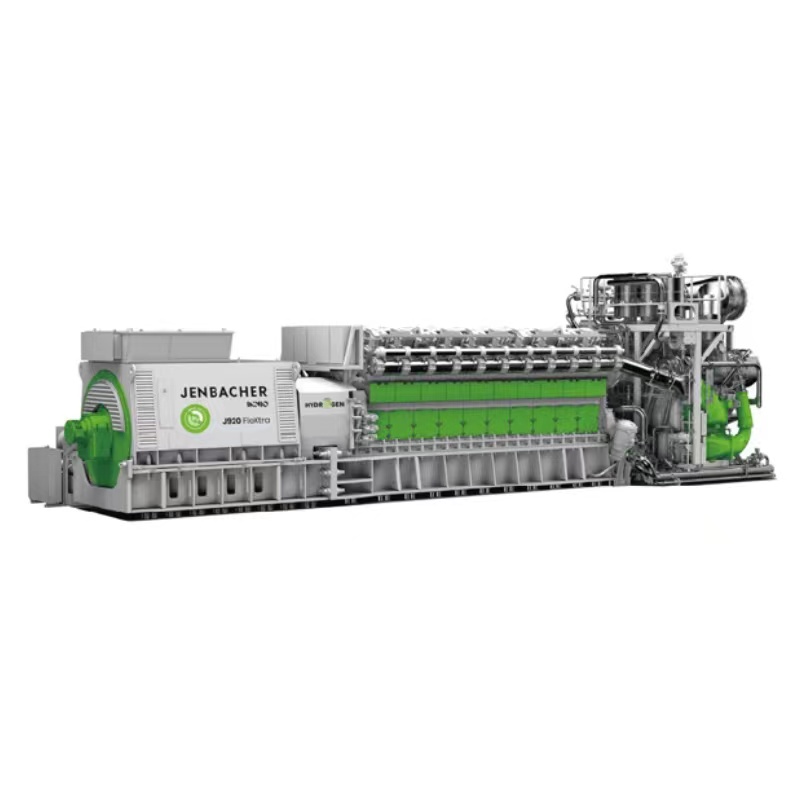

Jenbacher Engine Model:	J208	J312, J316, J320	J412, J416, J420	J612, J616, J620, J624	J920 FleXtra
Cylinder:	L8	V12, V16, V20	V12, V16, V20	V12, V16, V20 V24 2-stage turbocharged	V20
Speed:	1,500/1,800 rpm	1,500/1,800 rpm	1,500/1,800 rpm	1,500 rpm	1,000 rpm
Frequency:	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50Hz
Electrical Output:	250~330 kWe	0.5~1 MWe	0.8~1.5 MWe	1.8~4.5 MWe	10.6 MWe
Electrical Efficiency:	up to 39.7%	up to 43.2%	up to 44%	up to 47%	48.7%
Fast Start:	/	/	/	45-seconds (J620)	2-minutes
Delivered Engines:	~1,300	~11,000	~6,400	~6,400	53
Launch Date:	1976	1988	2002	1989(J624 in 2007)	2013
Pic:
