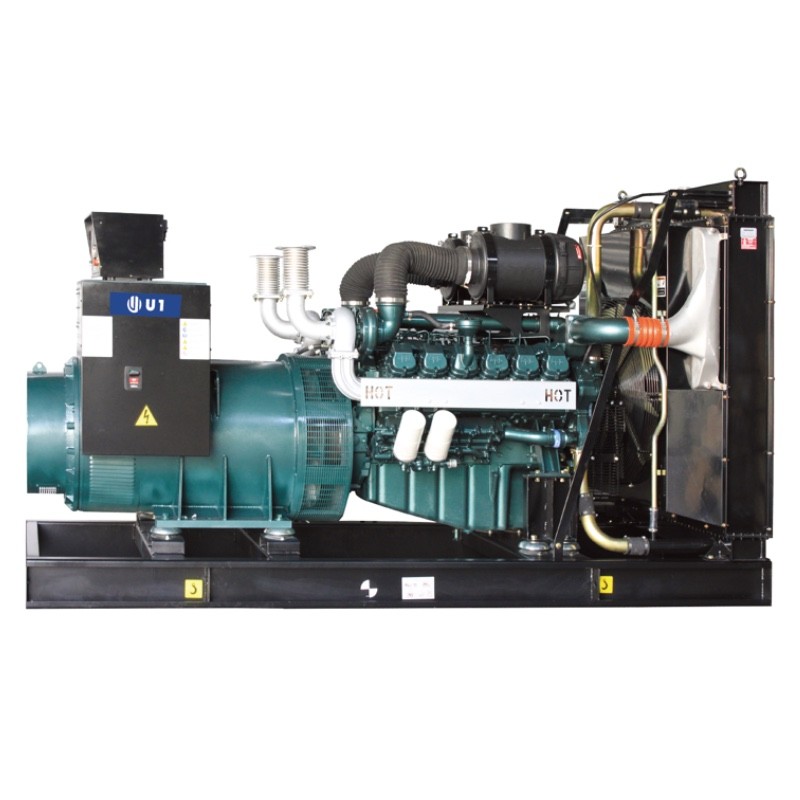

60Hz Diesel Gensets Powered By Doosan Engines

Optional Alternators: Leroy Somer, Stamford, Evotec, Engga
Optional Controllers: ComAP, Deepsea, DEIF, SmartGen
Optional Configurations:
ATS Panel, Synchronization Panel
CHP Heat Recovery System
Compact Soundproof Canopy, 20ft/40ft Containerized Canopy

INQUIRY Whatsapp

Product Details

Product Tags

DOOSAN Group was founded in 1896. Doosan Engine belongs to Doosan Engineering Machinery which was established after the acquisition of Daewoo ntegrated Machinery Co., Ltd in 2005. It continues to develop and launch new generation products with first-class performance and reliability based on the original Daewoo engine.

50Hz Diesel Gensets Powered By Doosan Engines

Product Overviews:

Diesel Gensets Powered By Doosan

Frequency	Genset Model	Prime Power kva/kw	Standby Power kva/kw	Engine Model	Fuel Consumption L/h	Cylinder	Displacement (L)
60Hz	U1GD7.5S-I	9/6.8	10/7.5	SP103NE	3	3L	1.0
60Hz	U1GD7.5S-II	9/6.8	10/7.5	SP103NH	3	3L	1.0
60Hz	U1GD14S-I	17/13	18/14	SP173NC	5.1	3L	1.6
60Hz	U1GD14S-2	17/13	18/14	SP173ND	5.1	3L	1.6
60Hz	U1GD20S	24/19	25/20	SP224NC	7.3	4L	2.2
60Hz	U1GD23S	26/21	29/23	SP183CA	7.8	4L	1.8
60Hz	U1GD25S	29/23	32/25	SP244TC	9	4L	2.2
60Hz	U1GD39S	44/35	49/39	SP244CA	10.9	4L	2.2
60Hz	U1GD57S	65/52	72/57	SP334CA	16.9	5L	3.2
60Hz	U1GD165S	188/150	206/165	DP086TA	41.3	6L	8.1
60Hz	U1GD170S	193/154	213/170	P086TI-I	42.4	6L	8.1
60Hz	U1GD200S	229/183	250/200	P086TI	50.6	6L	8.1
60Hz	U1GD225S	255/204	281/225	DP086LA	56	6L	8.1
60Hz	U1GD275S	313/250	344/275	P126TI	70.3	6L	11.1
60Hz	U1GD308S	344/275	385/308	P126TI-II	73.8	6L	11.1
60Hz	U1GD352S	400/320	440/352	DP126LB	94.7	6L	11.1
60Hz	U1GD391S	444/355	489/391	P158LE	102.5	8V	14.6
60Hz	U1GD431S	490/392	539/431	P158FE	119.3	8V	14.6
60Hz	U1GD458S	520/416	572/458	DP158LC	111.5	8V	14.6
60Hz	U1GD499S	566/453	624/499	DP158LD	127.1	8V	14.6
60Hz	U1GD508S	578/462	635/508	P180FE	137.7	8V	18.3
60Hz	U1GD550S	625/500	688/550	DP180LA	140.5	8V	18.3
60Hz	U1GD597S	679/543	747/597	DP180LB	150.7	8V	18.3
60Hz	U1GD660S6-I	750/600	825/660	DP222LA	161.7	12V	21.9
60Hz	U1GD660S6-II	750/600	825/660	P222FE	175.1	12V	21.9
60Hz	U1GD718S	794/635	898/718	DP222LB	172.7	12V	21.9
60Hz	U1GD739S	840/672	924/739	DP222LC	183.2	12V	21.9
60Hz	U1GD759S	863/690	949/759	DP222CA	188.3	12V	21.9
60Hz	U1GD825S	938/750	1031/825	DP222CB	200.1	12V	21.9
60Hz	U1GD880S	1000/800	1100/880	DP222CC	222.4	12V	21.9
