50Hz Diesel Gensets Powered By Doosan Engines

Optional Alternators: Leroy Somer, Stamford, Evotec, Engga
Optional Controllers: ComAP, Deepsea, DEIF, SmartGen
Optional Configurations:
ATS Panel, Synchronization Panel
CHP Heat Recovery System
Compact Soundproof Canopy, 20ft/40ft Containerized Canopy

INQUIRY Whatsapp

Product Details

Product Tags

DOOSAN Group was founded in 1896. Doosan Engine belongs to Doosan Engineering Machinery which was established after the acquisition of Daewoo ntegrated Machinery Co., Ltd in 2005. It continues to develop and launch new generation products with first-class performance and reliability based on the original Daewoo engine.

Product Overviews:

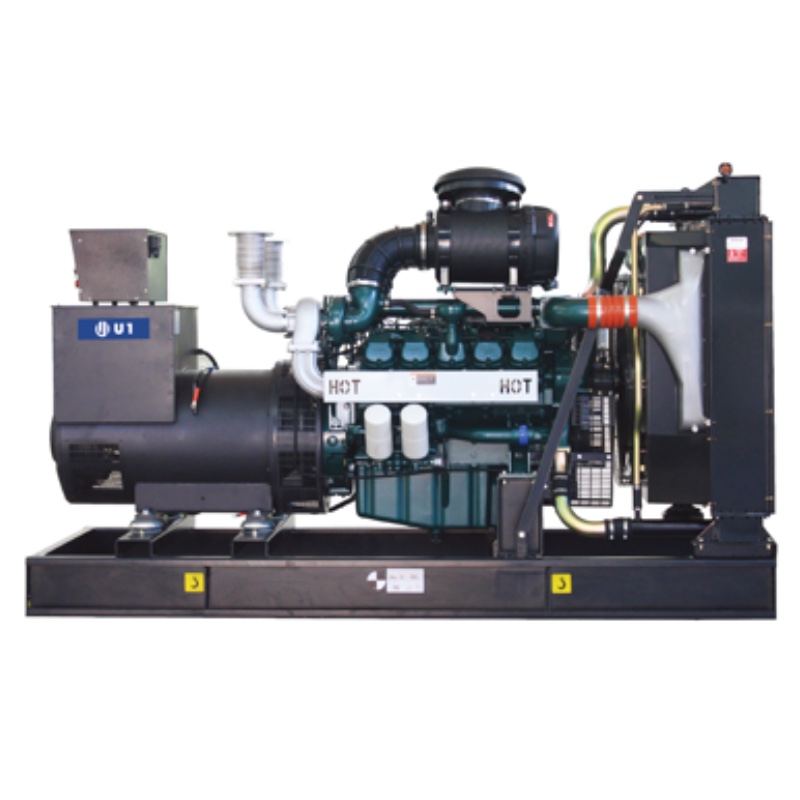

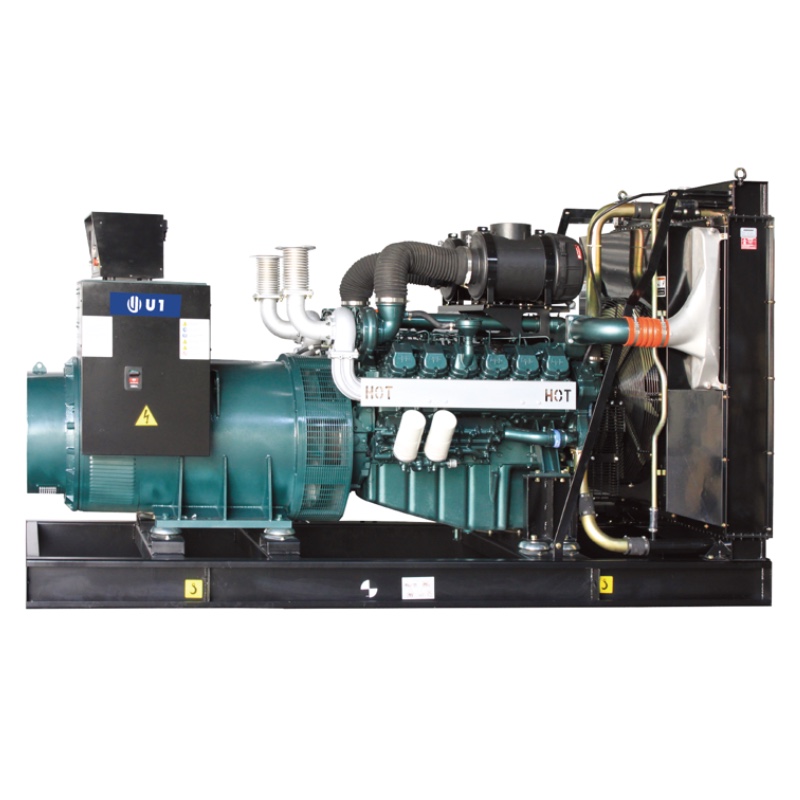

Diesel Gensets Powered By Doosan

Frequency	Genset Model	Prime Power kva/kw	Standby Power kva/kw	Engine Model	Fuel Consumption L/h	Cylinder	Displacement (L)
50Hz	U1GD6S	6.8/5.4	8/6	SP103NA	2.5	3L	1.0
50Hz	U1GD12S	14/11	15/12	SP173NA	3.7	3L	1.0
50Hz	U1GD15S	18/14	19/15	SP224NA	6.1	4L	2.2
50Hz	U1GD21S	24/19	26/21	SP183CA	6.5	4L	1.8
50Hz	U1GD22S	25/20	28/22	SP244TA	7.5	4L	2.4
50Hz	U1GD33S	38/30	41/33	SP244CA	9.8	4L	2.4
50Hz	U1GD55S	63/50	69/55	SP344CA	15.9	6L	2.4
50Hz	U1GD132S	150/120	165/132	DP086TA	33.7	6L	8.1
50Hz	U1GD148S	168/134	185/148	P086TI-1	35.4	6L	8.1
50Hz	U1GD176S	200/160	220/176	P086TI	43.1	6L	8.1
50Hz	U1GD201S	229/183	251/201	DP086LA	48.7	6L	8.1
50Hz	U1GD242S	275/220	303/242	P126TI	58.1	6L	11.1
50Hz	U1GD264S	300/240	330/264	P126TI-II	63.1	6L	11.1
50Hz	U1GD321S	365/292	402/321	DP126LB	78.7	6L	11.1
50Hz	U1GD358S	408/326	448/358	P158LE	89.3	8V	14.6
50Hz	U1GD400S	454/363	500/400	P158FE	105.1	8V	14.6
50Hz	U1GD407S	463/370	509/407	DP158LC	99.6	8V	14.6
50Hz	U1GD451S	513/410	564/451	P180FE	120.4	10V	18.3
50Hz	U1GD465S	529/423	582/465	DP158LD	115.1	8V	14.6
50Hz	U1GD506S	575/460	633/506	DP180LA	123.6	10V	18.3
50Hz	U1GD561S	638/510	701/561	DP180LB	136.4	10V	18.3
50Hz	U1GD572S	650/520	715/572	P222FE	148.5	12V	21.9
50Hz	U1GD605S	688/550	756/605	DP222LB	147.1	12V	21.9
50Hz	U1GD660S	750/600	825/660	DP222LC	161	12V	21.9
50Hz	U1GD671S	763/610	839/671	DP222CA	163.8	12V	21.9
50Hz	U1GD715S	813/650	894/715	DP222CB	174.1	12V	21.9
50Hz	U1GD803S	913/730	1004/803	DP222CC	195.1	12V	21.9
