60Hz Diesel Gensets Powered By Perkins Engines

Optional Alternators: Leroy Somer, Stamford, Evotec, Engga
Optional Controllers: ComAP, Deepsea, DEIF, SmartGen
Optional Configurations:
ATS Panel, Synchronization Panel
CHP Heat Recovery System
Compact Soundproof Canopy, 20ft/40ft Containerized Canopy

INQUIRY Whatsapp

Product Details

Product Tags

Perkins Engines Company Limited was established in 1932, which is one of the world's leading engine manufacturers and suppliers. Service networks can be found in more than 180 countries and regions. All networks are adhering to the most strict standards, to ensure that customers can easily access to the best service from every corner of the world.

Product Overviews:

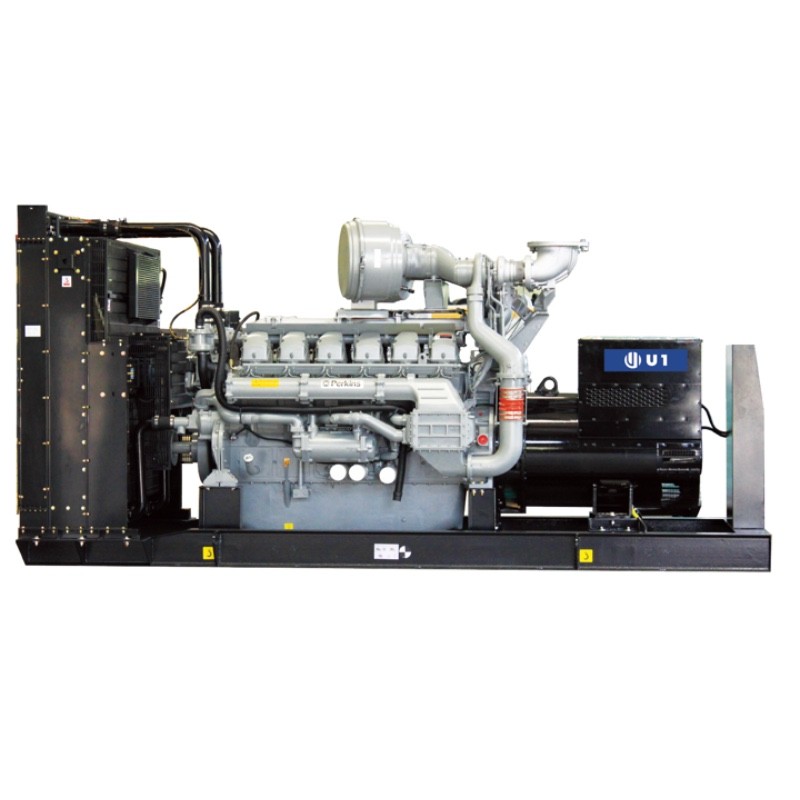

Diesel Gensets Powered By Perkins

Frequency	Genset Model	Prime Power kva/kw	Standby Power kva/kw	Engine Model	Fuel Consumption L/h	Cylinder	Displacement (L)
60Hz	U1GP10S6-I	10/9	13/10	403A-11G1	3.2	3L	1.1
60Hz	U1GP10S6-II	10/9	13/10	403D-11G	3.2	3L	1.1
60Hz	U1GP14S-I	15/12	18/14	403A-15G1	4.2	3L	1.5
60Hz	U1GP14S-II	15/12	18/14	403D-15G	4.2	3L	1.5
60Hz	U1GP15.6S	17,5/14	20/15.6	403A-15G2	4.3	3L	1.5
60Hz	U1GP21S-I	24/19	26/21	404A-22G1	6.2	4L	2.2
60Hz	U1GP21S-II	24/19	26/21	404D-22G	6.2	4L	2.2
60Hz	U1GP30S	33/26	37/30	404D-22TG	8.3	4L	2.2
60Hz	U1GP31S	35/28	38/31	1103A-33G	8.5	3L	3.3
60Hz	U1GP32S	36/29	40/32	404D-22TAG	8.9	4L	2.2
60Hz	U1GP47S	53/43	59/47	1103A-33TG1	11.2	3L	3.3
60Hz	U1GP60S	68/55	75/60	1103A-33TG2	14.6	3L	3.3
60Hz	U1GP67S	76/61	84/67	1104A-44TG1	17.8	4L	4.4
60Hz	U1GP80S6-I	79/72	100/80	1104C-44TAG1	22.0	4L	4.4
60Hz	U1GP80S6-II	79/73	100/80	1104A-44TG2	18.8	4L	4.4
60Hz	U1GP101S	115/92	127/101	1104C-44TAG2	26.9	4L	4.4
60Hz	U1GP135S	152/122	169/135	1106A-70TG1	35.2	6L	7.0
60Hz	U1GP150S	169/135	188/150	1106A-70TAG2	38.2	6L	7.0
60Hz	U1GP175S	197/158	219/175	1106A-70TAG3	41.4	6L	7.0
60Hz	U1GP200S6	225/180	250/200	1206A-E70TTAG1	54.5	6L	7.0
60Hz	U1GP220S-I	250/200	275/220	1206D-E70TTAG1	54.5	6L	7.0
60Hz	U1GP220S-II	250/200	275/220	1206A-E70TTAG2	54.5	6L	7.0
60Hz	U1GP220S-III	250/200	275/220	1206D-E70TTAG2	54.5	6L	7.0
60Hz	U1GP220S-IV	250/200	275/220	1206A-E70TTAG3	54.5	6L	7.0
60Hz	U1GP22PS-V	250/200	275/220	1206D-E70TTAG3	54.5	6L	7.0
60Hz	U1GP312S	352/282	389/312	1506A-E88TAG5	72.9	6L	8.8
60Hz	U1GP315S-I	357/285	394/315	1706A-E93TAG1	74.1	6L	9.3
60Hz	U1GP315S-II	357/285	394/315	1706A-E93TAG2	74.4	6L	9.3
60Hz	U1GP350S-I	400/320	438/350	2206C-E13TAG2	82.8	6L	13.0
60Hz	U1GP350S-II	400/320	438/350	2206C-E13TAG3	82.8	6L	13.0
60Hz	U1GP450S-I	500/400	563/450	2506C-E15TAG1	100	6L	15.0
60Hz	U1GP450S-II	500/400	563/450	2506C-E15TAG2	100	6L	15.0
60Hz	U1GP550S-I	625/500	687/550	2806C-E18TAG1A	127	6L	18.0
60Hz	U1GP550S-II	625/500	687/550	2806A-E18TAG2	127	6L	18.0
60Hz	U1GP660S	750/600	825/660	4006-23TAG2A	176	6L	23.0
60Hz	U1GP748S	850/680	935/748	4006-23TAG3A	200	6L	23.0
60Hz	U1GP880S	1000/800	1100/880	4008TAG2	224	8L	30.6
60Hz	U1GP1100S6	1250/1000	1375/1100	4012-46TWG2A	266	12V	46.0
60Hz	U1GP1200S6	1375/1100	1500/1200	4012-46TWG3A	289	12V	46.0
60Hz	U1GP1320S	1500/1200	1650/1320	4012-46TAG2A	315	12V	46.0
60Hz	U1GP1500S	1688/1350	1875/1500	4012-46TAG3A	356	12V	46.0
