50Hz Diesel Gensets Powered By Perkins Engines

Optional Alternators: Leroy Somer, Stamford, Evotec, Engga
Optional Controllers: ComAP, Deepsea, DEIF, SmartGen
Optional Configurations:
ATS Panel, Synchronization Panel
CHP Heat Recovery System
Compact Soundproof Canopy, 20ft/40ft Containerized Canopy

INQUIRY Whatsapp

Product Details

Product Tags

Perkins Engines Company Limited was established in 1932, which is one of the world's leading engine manufacturers and suppliers. Service networks can be found in more than 180 countries and regions. All networks are adhering to the most strict standards, to ensure that customers can easily access to the best service from every corner of the world.

Product Overviews:

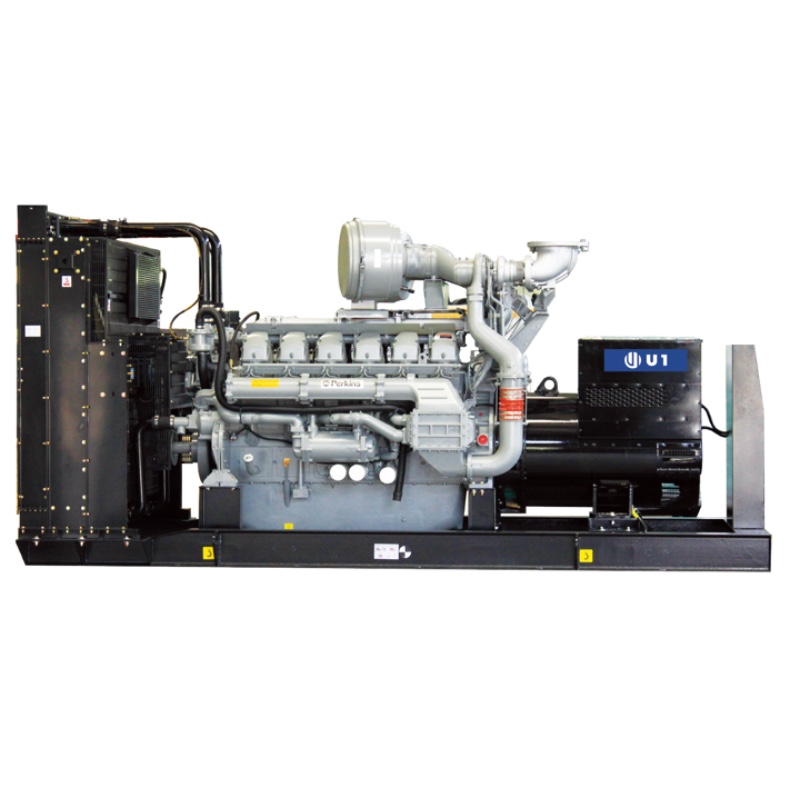

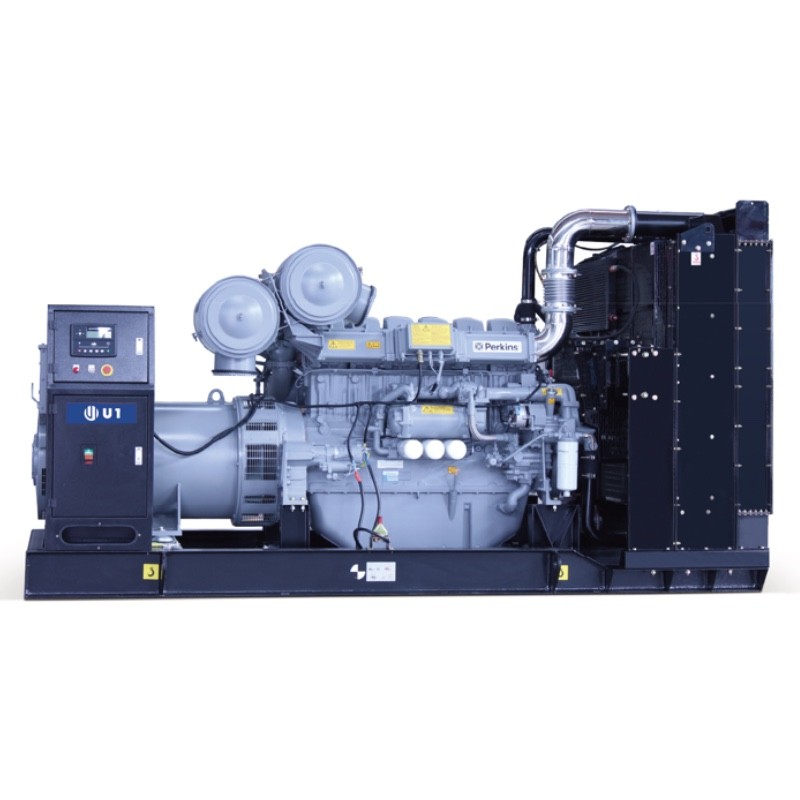

Diesel Gensets Powered By Perkins

Frequency	Genset Model	Prime Power kva/kw	Standby Power kva/kw	Engine Model	Fuel Consumption L/h	Cylinder	Displacement (L)
50Hz	U1GP8S-I	9/7	10/8	403A-11G1	2.6	3L	1.1
50Hz	U1GP8S-II	9/7	10/8	403D-11G	2.6	3L	1.131
50Hz	U1GP11S-I	13/10	14/11	403A-15G1	3.6	3L	1.496
50Hz	U1GP11S-II	13/10	14/11	403D-15G	3.6	3L	1.496
50Hz	U1GP13S	15/12	17/13	403A-15G2	5	3L	1.5
50Hz	U1GP18S-I	20/16	22/18	404A-22G1	5.3	4L	2.216
50Hz	U1GP18S-II	20/16	22/18	404D-22G	5.3	4L	2.216
50Hz	U1GP24S	28/22	30/24	404D-22TG	7	4L	2.2
50Hz	U1GP27S	30/24	33/27	1103A-33G	7.1	3L	3.3
50Hz	U1GP40S	45/36	50/40	1103A-33TG1	10.7	3L	3.3
50Hz	U1GP60S	53/48	66/60	1103A-33TG2	13.9	3L	3.3
50Hz	U1GP65S	58/52	72/65	1104A-44TG1	14.8	4L	4.4
50Hz	U1GP71S-I	80/64	88/71	1104A-44TG2	18.7	4L	4.4
50Hz	U1GP71S-II	80/64	88/71	1104C-44TAG1	18.6	4L	4.4
50Hz	U1GP88S	100/80	110/88	1104C-44TAG2	22.6	4L	4.4
50Hz	U1GP120S	135/108	150/120	1106A-70TG1	38	6L	7
50Hz	U1GP132S	150/120	165/132	1106A-70TAG2	33.4	6L	7
50Hz	U1GP160S	180/144	200/160	1106A-70TAG3	41.4	6L	7
50Hz	U1GP176S-I	200/160	220/176	1106A-70TAG4	47	6L	7
50Hz	U1GP176S-II	200/160	220/176	1206A-E70TTAG1	45.8	6L	7
50Hz	U1GP176S-III	200/160	220/176	1206D-E70TTAG1	45.8	6L	7
50Hz	U1GP200S-I	230/184	250/200	1206A-E70TTAG2	51	6L	7
50Hz	U1GP200S-II	230/184	250/200	1206D-E70TTAG2	51	6L	7
50Hz	U1GP220S-I	250/200	275/220	1206A-E70TTAG3	56.9	6L	7
50Hz	U1GP220S-II	250/200	275/220	1206D-E70TTAG3	56.9	6L	7
50Hz	U1GP264S-I	300/240	330/264	1506A-E88TAG5	64.9	6L	8.8
50Hz	U1GP264S-II	300/240	330/264	1706A-E93TAG1	63.2	6L	9.3
50Hz	U1GP306S	347/278	383/306	1706A-E93TAG2	71.3	6L	9.3
50Hz	U1GP320S	350/280	400/320	2206C-E13TAG2	75	6L	13
50Hz	U1GP360S	400/320	450/360	2206C-E13TAG3	85	6L	13
50Hz	U1GP400S	455/364	500/400	2506C-E15TAG1	99	6L	15
50Hz	U1GP440S	500/400	550/440	2506C-E15TAG2	106	6L	15
50Hz	U1GP520S	591/473	650/520	2806C-E18TAG1A	129	6L	18
50Hz	U1G0560S	650/520	700/560	2806A-E18TAG2	132	6L	18
50Hz	U1GP660S	750/600	825/660	4006-23TAG2A	157	6L	23
50Hz	U1GP704S	800/640	880/704	4006-23TAG3A	172	6L	23
50Hz	U1GP800S	910/728	1000/800	4008TAG1A	195	8L	30.6
50Hz	U1G0900S-I	1000/800	1125/900	4008TAG2A	220	8L	30.6
50Hz	U1GP900S-II	1000/800	1125/900	4008TAG2	230	8L	30.6
50Hz	U1GP1000S	1125/900	1250/1000	4008-30TAG3	262	8L	30.6
50Hz	U1GP1100S	1250/1000	1375/1100	4012-46TWG2A	285	12V	45.8
50Hz	U1GP1200S	1375/1100	1500/1200	4012-46TWG3A	305	12V	45.8
50Hz	U1GP1320S	1500/1200	1650/1320	4012-46TAG2A	354	12V	45.8
50Hz	U1GP1500S	1688/1350	1875/1500	4012-46TAG3A	383	12V	45.8
50Hz	U1GP1600S	1850/1480	2000/1600	4016TAG1A	434	16V	61.123
50Hz	U1GP1800S	2000/1600	2250/1800	4016TAG2A	422	16V	61.123
50Hz	U1GP2000S	2250/1800	2500/2000	4016-61TRG3	470	16V	61.123
