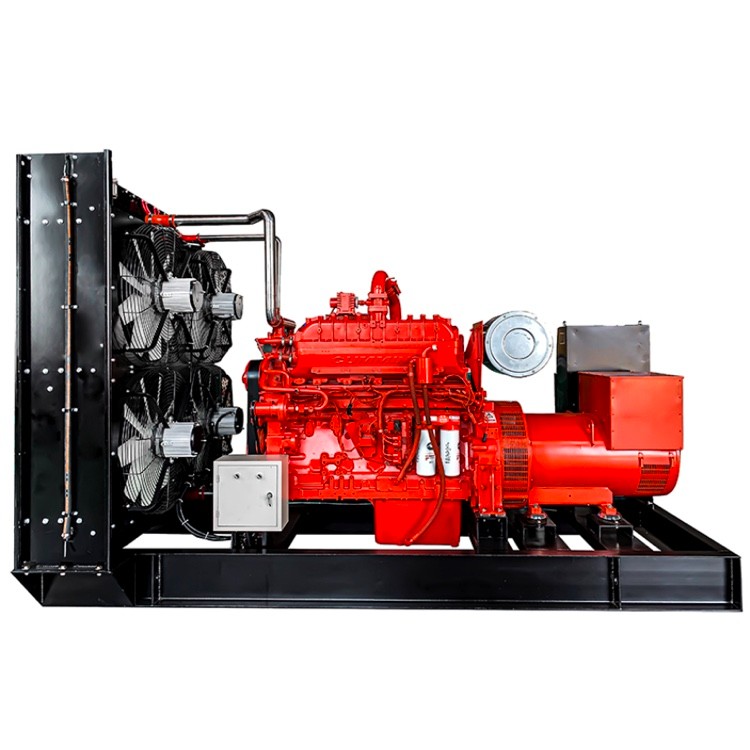

400kW Gas Genset Powered By Cummins

Genset Model: U1C400-G
Continuous Power: 400kW
Frequency: 50Hz
Speed: 1500RPM
Voltage: 400/230V
Fuel Gas: Natural Gas

INQUIRY Whatsapp

Product Details

Product Tags

Genset Working Condition:

Acceptable Working Conditions:

Ambient temperature: -10℃~+40℃

(Antifreeze or hot water needed for below -20℃)

Relative humidity: <90% (20℃）

Altitude: ≤500m

Applied Gas: Natural gas

Acceptable Fuel Gas Pressure: 7~30kPa, CH₄ Content ≥85%

Gas doesn't include free water or free materials (the size of impurities should be less than 5μm.)

Genset Specification:

Gas Generator Set Data
Genset Model	U1C400-G
Continuous Power	400kW/500kVA
Connection Type	3 phases 4 wires
Power Factor Cosfi	0.8 lagging
Voltage	400/230V
Frequency (Hz)	50
Rated Speed (RPM)	1500
Gas Genset Electrical Efficiency	37.5%

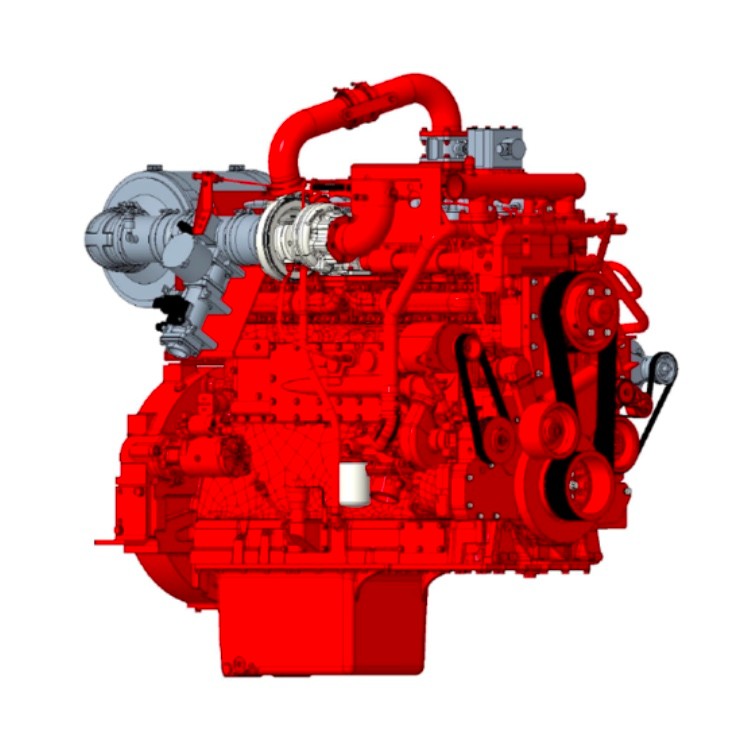

Gas Engine Model	Cummins K19N-G4
Alternator Model	Leroy Somer LSA47.3M7
Voltage Stabilized Regulation	≤±1.5%
Voltage Instantaneous Regulation	≤±20%
Voltage Recovery Time (s)	≤1
Voltage Fluctuation Ratio	≤1%
Voltage Wave Aberration Ratio	≤5%
Frequency Stabilized Regulation	≤1% (adjustable)
Frequency Instantaneous Regulation	-10%~12%
Frequency Fluctuation Ratio	≤1%
Generator Insulation Class	H
Net Weight	3950kg
Dimension	381016502220mm

ComAp Control Panel IG-NT (Controller IG-NTC-BB connected with Inteli Vision Display screen

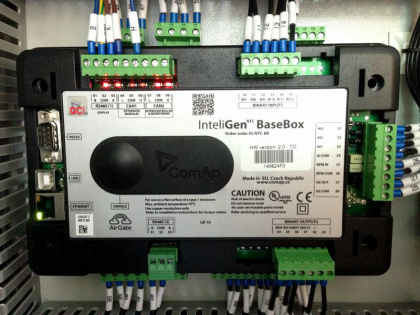

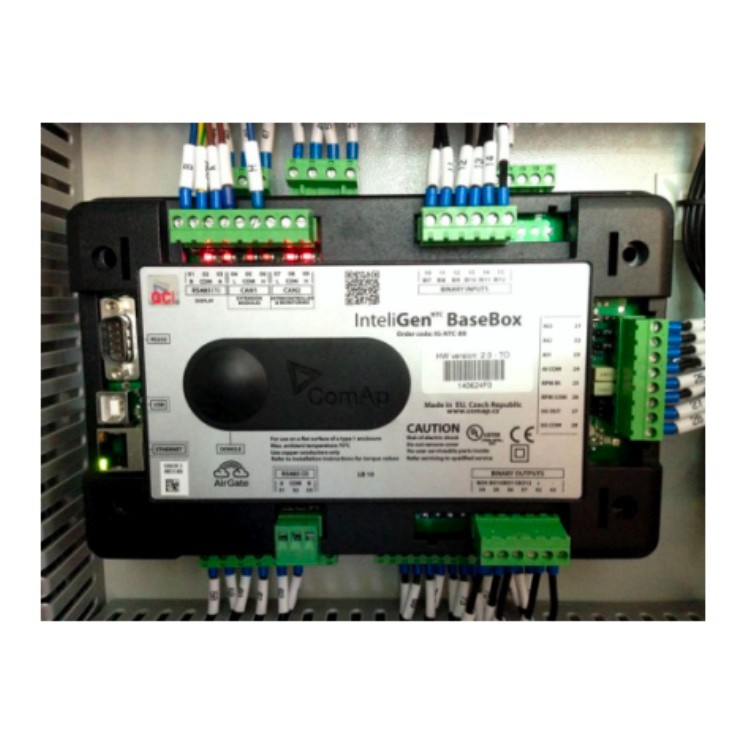

ComAp InteliGen NTC BaseBox is a comprehensive controller for both single and multiple gensets operating in standby or parallel modes. The detachable modular construction allows easy installation with the potential for many different extension modules designed to suit individual customer requirements.

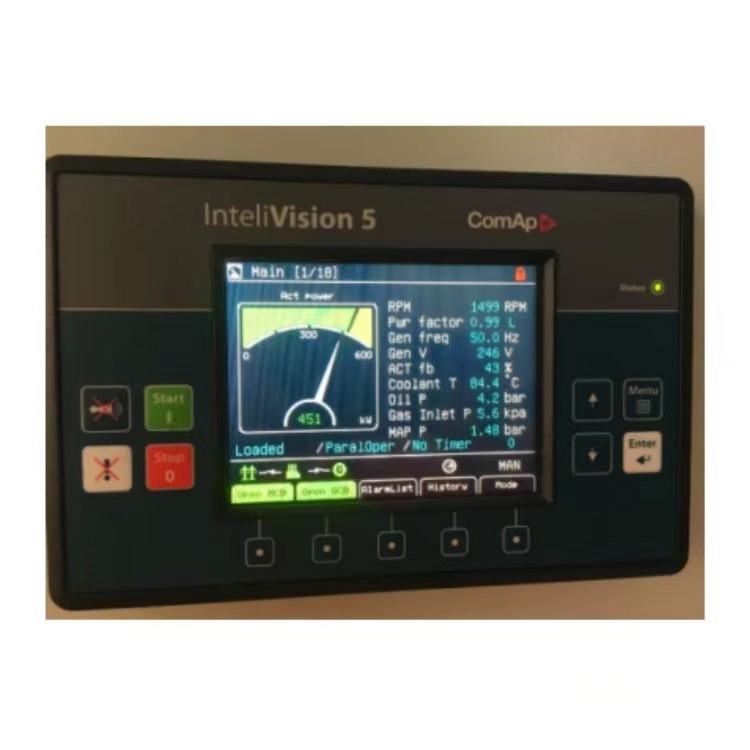

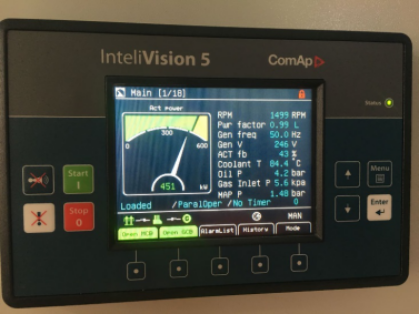

InteliGen NT BaseBox can be connected with InteliVision 5 display screen which is 5.7" Color TFT display screen.

Features:

1. Support of engines with ECU (J939, Modbus and other proprietary interfaces); alarm codes displayed in text form

2. AMF function

3. Automatic synchronizing and power control

4. Base load, Import/Export

5. Peak shaving

6. Voltage and PF control (AVR)

7. Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

8. Mains measurement: U, I, Hz, kW, kVAr, PF

9. Selectable measurement ranges for AC voltages and currents - 120/277V, 0-1/0-5A 1)

10. Inputs and outputs confi gurable for various customer needs

11. Bipolar binary outputs - possibility to use

12. BO as High or Low side switch

13. RS232/RS485 interface with Modbus support

14. Analog/GSM/ISDN/CDMA modem support

15. SMS messages; ECU Modbus interface

16. Secondary isolated RS485 interface 1)

17. Ethernet connection (RJ45) 1)

18. USB 2.0 slave interface 1)

19. Controller redundancy

20. Event-based history (up to 1000 records) with

21. Customer selectable list of stored values; RTC; statistic values

22. Integrated PLC programmable functions

23. Interface to remote display unit

24. DIN-Rail mount Integrated fixed and configurable protections

25. 3 phase integrated generator protections

26. IDMT overcurrent + Short current protection

27. Overload protection

28. Reverse power protection

29. Instantaneous and IDMT earth fault current

30. 3 phase integrated mains protections (U+f)

31. Vector shift and ROCOF protection

32. All binary/analog inputs free configurable for various protection types: HistRecOnly/Alarm Only/Alarm+History indication/Warning/Off Load

33. Slow stop/Breaker Open&Cool Down/Shutdown

34. Shutdown override/Main protect/Sensor fail

Synchronization Panel
Model	SP400
Capacity	800A
Air circuit breaker brand	CHINT
Controller	ComAp IG-NT
Features: Automatically synchronize gas gensets Automatically unload the genset Programmed start and stop genset Genset monitoring and protecting Synchronize gensets with national grid (mains)

Scope of Supply:

1. Brand new Cummins gas engine.

2. Brand new brushless Leroy Somer alternator

3. Genset automatic controller, ComAp IG-NTC-BB controller with IV5 display screen

4. Synchronization panel

5. Gas train valves (Germany DUNGS gas regulator, solenoid valve, flame arrestor, ball valve).

6. Automatic Air/Fuel Ratio control system.

7. Radiator cooling system

8. Accessories list for each engine:

Items	Quantity
Silencers	2
Elbows	1 set
Screws and flanges	1 set
Asbestos Pad	1 set
Anti-rust liquid	1
Genset starting free maintenance batteries, Battery charger, Battery cables	1 set
Standard toolbox	1
Documents list:
Genset operation manual, Genset maintenance manual	1 set
Engine part book	1
Alternator manuals, maintenance manuals, parts book	1 set
Genset installation drawings electrical system drawings	1 set
ComAp IG-NT Controller instruction	1
Engine Certificate, Alternator Certificate, Genset Certificate	1
Genset Testing Reports	1
