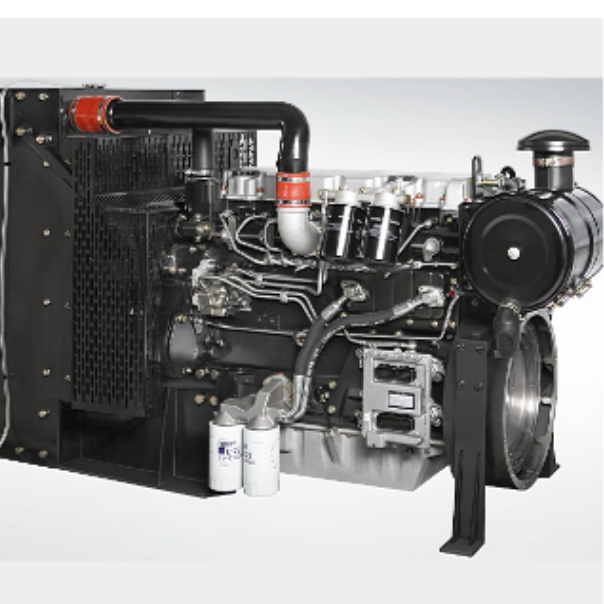

Natural Gas Engine For Gensets From Evol
Engine Model | 1004NG | 1006NG | 1006-G6TAG | |
E4α 100 Series | E6α 100 Series | |||
Cyl.No. | 4-Cyl. | 6-Cyl. | 6-Cyl. | |
Induction System | NA | NA | T | |
Displacement(L) | 3.99 | 5.98 | 5.98 | |
Bore×Stroke(mm) | 100×127 | 100×127 | 100×127 | |
Engine Prime Power | kW/1500rpm | 30 | 50 | 90 |
kW/1800rpm | 36 | 60 | 100 | |
Engine Standby Power | kW/1500rpm | 33 | 55 | 99 |
kW/1800rpm | 39 | 66 | 110 |
Governor Type | Electronic | |||
Electrical System | 12V | 12V | 12V/24V | |
Engine Net Weight(KG) | 520 | 670 | 710 | |
Engine Overall Size (mm) | 1275*735*938 | 1546*759*1106 | 1632*811*1043 | |
Flywheel/Flywheel Housing | SAE3/11.5" | |||
Generator Prime Power | kW/1500rpm | 27 | 45 | 80 |
kW/1800rpm | 32.4 | 54 | 90 |
Requirement for Natural gas 1.Methane should be at least 95% 2.The natural gas temprature should be between 0-60℃ 3.No inpurity should be in the gas.Water in the gas should be less than 20g/Nm3. 4.Heat value should be at least 5500kcal/m3, if less than this value, the power of the engine will be declined. 5.Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary. 6.The gas should be dehydrated and deulfurated. Make sure that there is no liquid in the gas, H2S<200mg/Nm3
|
