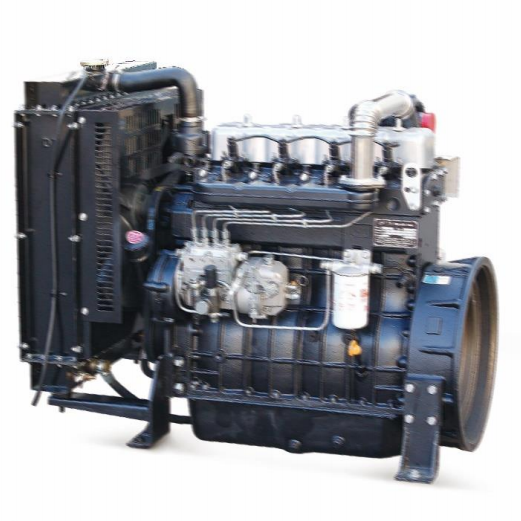

Ricardo TH4100 Series Diesel Engine

Rated power/speed(KW/r/min):
30.1/1500-66/1500  34/1800-70/1800
Fuel Consumption(g/kw.h):
≤258.4, ≤251.6
Oli pressure under calibration conditions(mpa):
0.2-0.45. 0.2-0,4

INQUIRY Whatsapp

Product Details

Product Tags

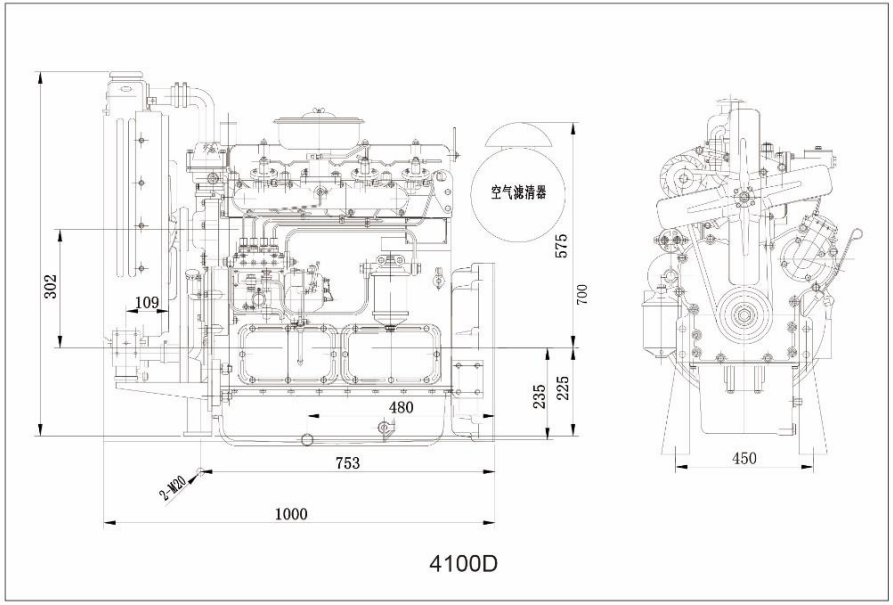

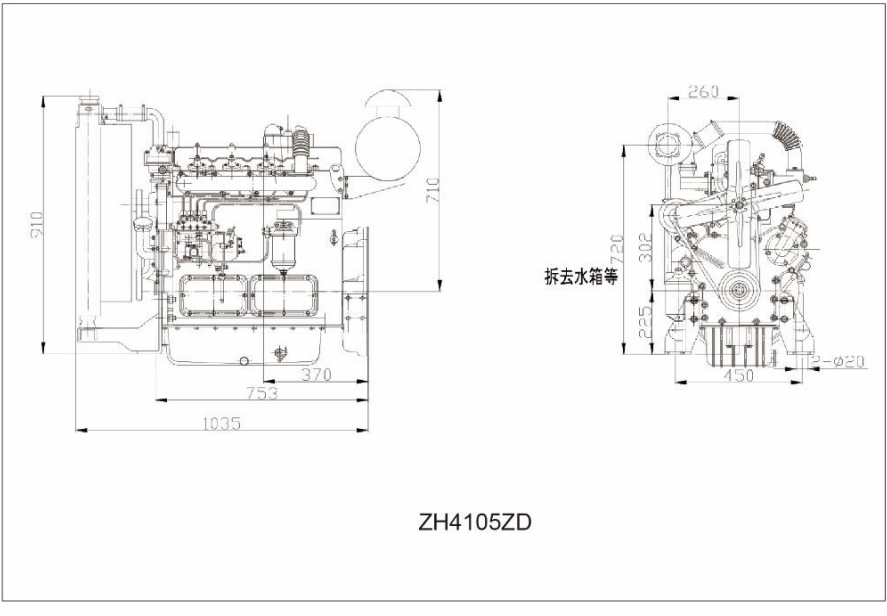

Type	ZH4100D	ZH4100ZD	ZH4102D	Zh4102ZD	ZH4105D	ZH4105ZD	ZH4105ZLD
Number of Cylinders	4	4	4	4	4	4	4
Bore/ stroke(mm)	∮100-115	∮100-115	∮102-115	∮102-115	∮105-120	∮105-120	∮105-120
Cylinder volume	3.61	3.61	3.76	3.76	4.15	4.15	4.15
Compression ratio	19∶1	17∶1	19∶1	17∶1	18∶1	18∶1	18∶1
Firing sequence	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2	1-3-4-2
Flywheel interface	SAE#11.5	SAE#11.5	SAE#11.5	SAE#11.5	SAE#11.5	SAE#11.5	SAE#11.5
Speed regulation method	Mechanical speed regulation Electronic speed regulation	Mechanical speed regulation Electronic speed regulation	Mechanical speed regulation Electronic speed regulation	Mechanical speed regulation Electronic speed regulation	Mechanical speed regulation Electronic speed regulation	Mechanical speed regulation Electronic speed regulation	Mechanical speed regulation Electronic speed regulation
Air intake method	Naturally aspirated	Boosting	Naturally aspirated	Boosting	Naturally aspirated	Boosting	Supercharged intercooling
Starting method	Electric Start	Electric Start	Electric Start	Electric Start	Electric Start	Electric Start	Electric Start
Cooling method	Forced water cooling	Forced water cooling	Forced water cooling	Forced water cooling	Forced water cooling	Forced water cooling	Forced water cooling
Normal operating temperature of cooling water	≦95	≦95	≦95	≦95	≦95	≦95	≦95
Rated power/ speed (KW/r/min)	30.1/1500	41.2/1500	33/1500	44/1500	38/1500	56/1500	66/1500
Rated power/ speed (KW/r/min)	34/1800	46/1800	36/1800	50/1800	38/1800	60/1800	70/1800
Fuel Consumption(g/kw.h)	≤258.4	≤251.6	≤258.4	≤258.4	≤251.6	≤251.6	≤251.6
Fuel supply advance angle before top dead center	15°±2°	15°±2°	15°±2°	15°±2°	15°±2°	15°±2°	15°±2°
Oli pressure under calibration conditions (mpa)	0.2-0.45	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Water tank capacity(L)	5.2	5.2	5.2	5.2	8.6	8.6	7.7
Oil bottom capacity(L)	13	13	13	13	13	13	13
Outer packaging size	11406801120	11406801120	11406801120	11406801120	11406801120	12507801140	12507801140
Weight	345	350	345	350	353	365	376
